Arduino Uno R3 in Bangladesh

For sale by: BikriSohoj Store
আরও দেখুন Arduino

  • Arduino Uno R3 in Bangladesh
  • Arduino Uno R3 in Bangladesh
  • Arduino Uno R3 in Bangladesh
  • Arduino Uno R3 in Bangladesh
Tk 1,200
Tk 900
Color Family:
Arduino Uno R3 Arduino Uno R3 SMD Arduino Leonardo with Headers Arduino Pro Micro 5V/16MHz Arduino Nano V3.0 (CH340)
Quantity
এই পণ্যটি আপনার হাতে পেতে 2 থেকে সর্বোচ্চ 4 দিন সময় লাগবে ।
Add to Cart Buy Now
অর্ডার করতে সমস্যা হলে আমাদের ফেসবুক পেজ থেকে অর্ডার করুন
Shere This:
                    Micro-controller:  ATmega328.
Operating Voltage: 5V.
Input Voltage (recommended): 7-12V.
Digital I/O Pins: 14 (of which 6 provide PWM output).
Analog Input Pins: 6.


— General Specification –-
Model Type: UNO Rev R3
Microcontroller Chip: ATmega328
Operating Voltage (VDC): 5
Input Voltage(Recommended): 7-12V
Input Voltage (limit): 6-20V
Analog I/O Pins: 6
Digital I/O Pins: 14 (of which 6 provide PWM output)
PWM Digital I/O Pins: 6
DC Current per I/O Pin (mA): 40
DC Current for 3.3V Pin (mA): 50
Clock Speed: 16 MHz
SRAM: 2
EEPROM: 1 KB (ATmega328)
Flash Memory: 32 KB
On Board LEDs: On/Off, L (PIN 13), TX, RX

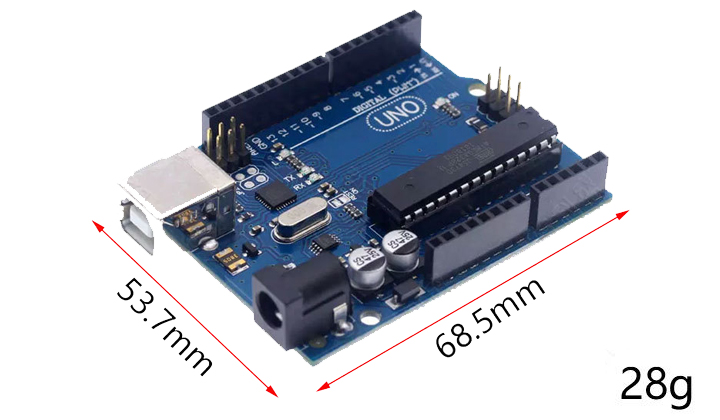

Dimensions in mm (LxWxH): 75 x 54 x 12
Weight (gm): 28 (without cable)
54 (with cable)
Shipment Weight: 0.08 kg
Shipment Dimensions: 9 × 6 × 4 cm



— Tech specs —
MICROCONTROLLER: ATmega328P
OPERATING VOLTAGE: 5V
INPUT VOLTAGE (RECOMMENDED): 7-12V
INPUT VOLTAGE (LIMIT): 6-20V
DIGITAL I/O PINS: 14 (of which 6 provide PWM output)
PWM DIGITAL I/O PINS: 6
ANALOG INPUT PINS: 6
DC CURRENT PER I/O PIN: 20 mA
DC CURRENT FOR 3.3V PIN: 50 mA
FLASH MEMORY: 32 KB (ATmega328P) of which 0.5 KB is used by the bootloader
SRAM: 2 KB (ATmega328P)
EEPROM: 1 KB (ATmega328P)
CLOCK SPEED: 16 MHz
LED_BUILTIN: 13
LENGTH: 68.6 mm
WIDTH: 53.4 mm
WEIGHT: 25 g


Overview

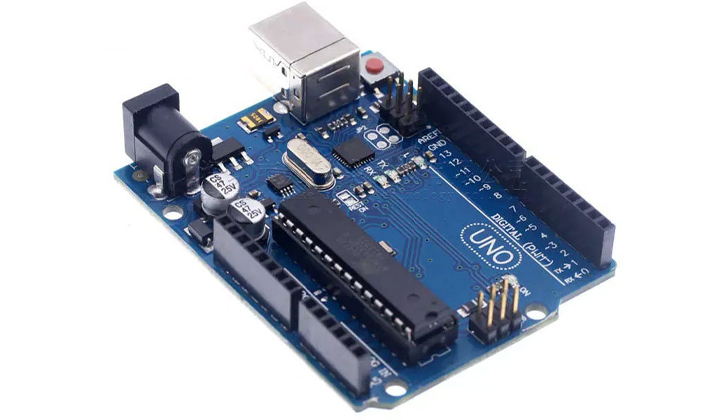

Arduino Uno is a microcontroller board based on the ATmega328P (datasheet). It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator (CSTCE16M0V53-R0), a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.. You can tinker with your Uno without worrying too much about doing something wrong, worst case scenario you can replace the chip for a few dollars and start over again.

Arduino Uno R3 Price in Bangladesh
বাজার যাচাই করে দেখতে পারেন আমাদের থেকে কম দামে আর কোথাও একই পণ্য খুঁজে পাবেন না।
