Arduino Nano V3.0 CH340 in Bangladesh

For sale by: BikriSohoj Store
আরও দেখুন Arduino

  • Arduino Nano V3.0 CH340 in Bangladesh
  • Arduino Nano V3.0 CH340 in Bangladesh
Tk 730
Tk 650
Color Family:
Arduino Uno R3 Arduino Uno R3 SMD Arduino Leonardo with Headers Arduino Pro Micro 5V/16MHz Arduino Nano V3.0 (CH340)
Quantity
এই পণ্যটি আপনার হাতে পেতে 2 থেকে সর্বোচ্চ 4 দিন সময় লাগবে ।
Add to Cart Buy Now
অর্ডার করতে সমস্যা হলে আমাদের ফেসবুক পেজ থেকে অর্ডার করুন
Shere This:
                    Operating Voltage (logic level): 5V
With Mini USB
8 analog inputs ports: A0 ~ A7
14 Digital input/output ports: TX, RX, D2 ~ D13
1 pair of TTL level serial transceiver ports RX / TX
Using Atmel Atmega328P-AU MCU
There is a bootloader installed in it
Standard 0.1” spacing DIP (breadboard friendly).
Manual reset switch.

Features :
1 pair of TTL level serial transceiver ports RX / TX
Using Atmel Atmega328P-AU MCU
There is a bootloader(old) installed in it (If needed)
Support USB download and Power
Support for external 5V ~ 12V DC power supply
Support power supply by 9V battery
Support ISP download
Automatic reset during program download.
Power OK blue LED on the bottom.
Green (TX), red (RX) and orange (L) LED.
+5V to AREF jumper.
Auto sensing/switching power input.
Small mini-B USB for programming and serial monitor.
ICSP header for direct program download.
Standard 0.1” spacing DIP (breadboard friendly).
Manual reset switch.

General Specification
Model Type: Nano
Color: Blue
Microcontroller: ATmega328
Operating Voltage (VDC): 5
Input Voltage(Recommended): 7-12 V
Power Consumption (Watt): 1
Analog I/O Pins: 8
Digital I/O Pins: 22
PWM Output Pins: 6
Architecture: AVR
Clock Speed: 16 MHz
DC Current per I/O Pin (mA): 40
Flash Memory: 32 KB
EEPROM: 1KB
SRAM: 2

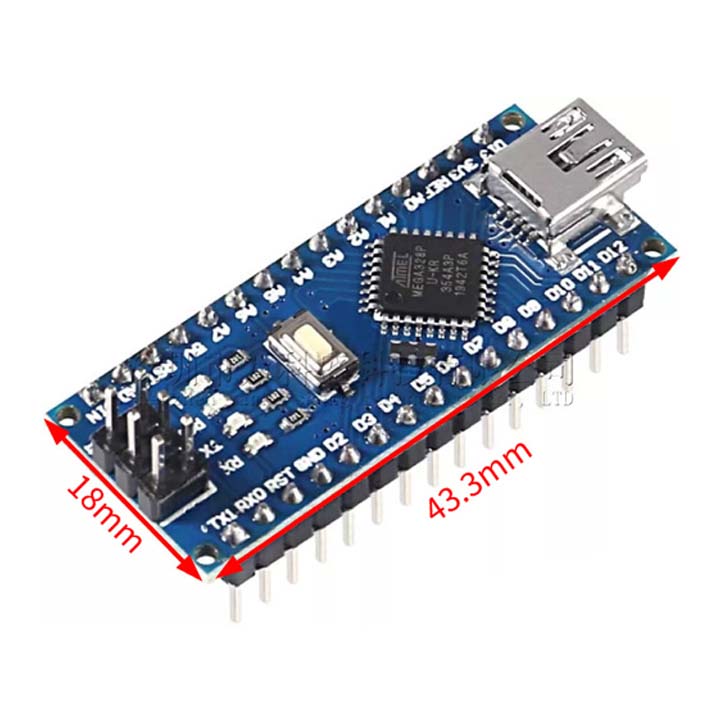

Dimensions (mm) LxWxH: 45x18x5
Weight (gm): 8
Shipment Weight: 0.105 kg
Shipment Dimensions: 6 × 5 × 3 cm

Package Includes :

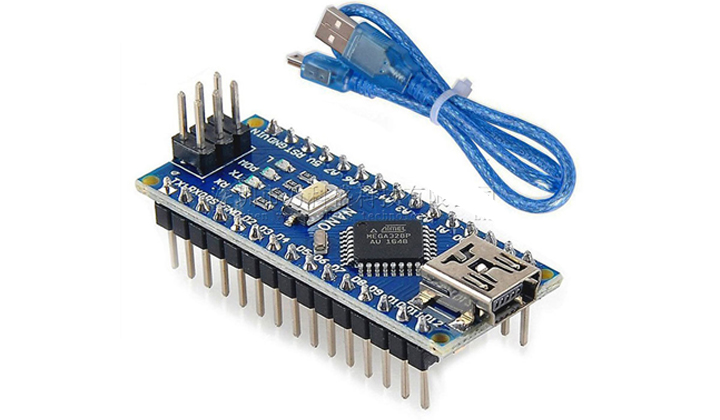

1 x Nano V3.0 CH340 Chip with Mini USB Cable Compatible with Arduino


Arduino Nano V3.0 (CH340) Price in Bangladesh
বাজার যাচাই করে দেখতে পারেন আমাদের থেকে কম দামে আর কোথাও একই পণ্য খুঁজে পাবেন না।
