Negotiable

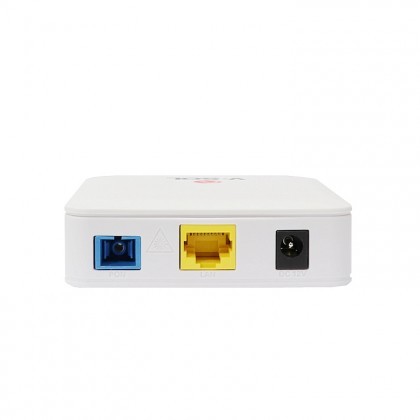

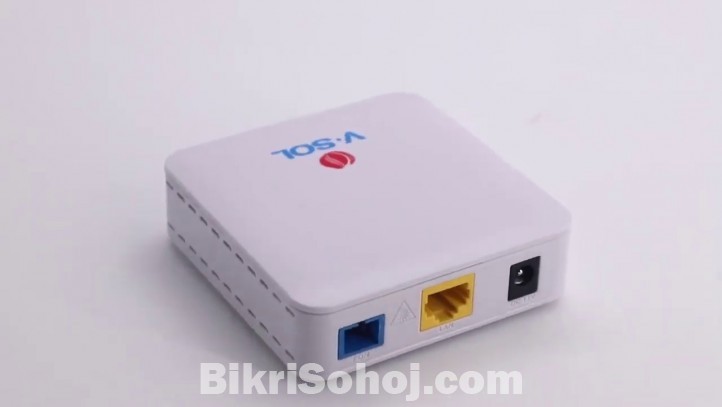

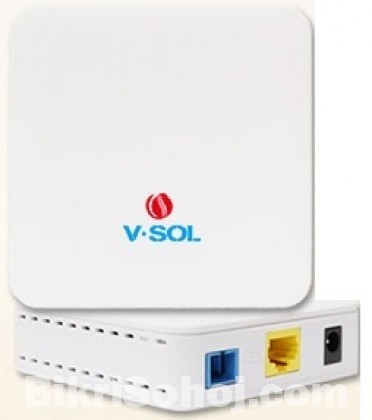

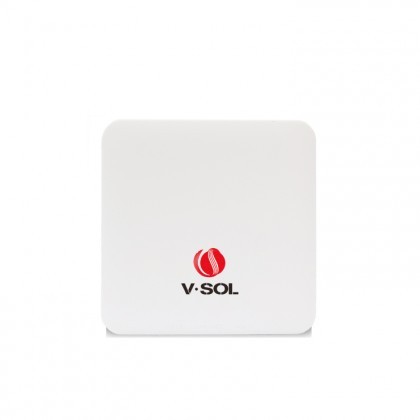

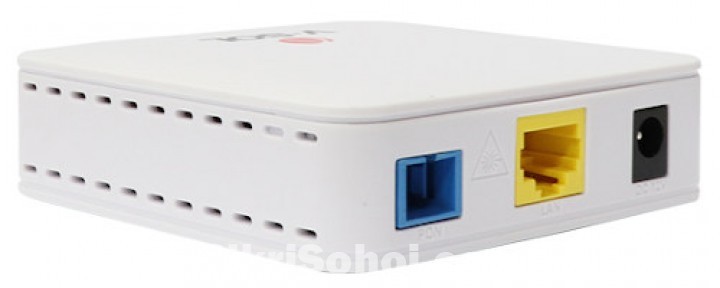

                                            V2801SE is 1GE Secure ONU designed for fulfilling FTTH ultra-broadband access request of home and SOHO users. It is based on the stable and mature EPON technology, which has high performance/price ratio, and the technology of layer 3 Ethernet switch. It is high cost performance and easy to maintain, with Dual mode, Industrial design,and Powerful firewall.

Technical Specifications

Power adapter input:220V AC,50HZ
System power supply:  See the nameplate on the device
Ambient temperature:-20 ~ +55℃   Ambient humidity:10% ~ 95%(non-condensing)
Store temperature:-30 ~ +60℃  Store humidity:10% ~ 95%(non-condensing)
For other technical specifications, see the following table:
Model

Dimension

(L x W x H)

Power

Power Consumption

Weight(No Power Adapter)

V2801ZE

115mm×75mm×28mm

12V,0.5A

≤3.6W

About 120g

Hareware parameter

Parameter Name

Hardware Parameter

EPON

Chipset

ZTE

PON

SC single-mode/single-fiber, symmetric 1.25Gbps

Wavelength

Tx 1310nm, Rx 1490nm

Sensitivity

<-27dBm(PX20+)

Overload

>-3dBm(PX20+)

Optical Type

SC/PC

Interface Type

1*10/100/1000Mbps

Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector

Indicators

5, For POWER,LOS,PON ,Link,System



Parameter Name

Software Parameter

EPON

Basic

Support MPCP discover®ister

Support authentication Mac/Loid/Mac+Loid

Support Triple Churning

Support DBA bandwidth

Alarm

Support Dying Gasp

Support PortLoopDetect

Support Eth Port Los

LAN

Support Port rate limiting

Support Loop detection

Support Flow control

Support Storm control

Support Mac limiting(max mac limit 64)

VLAN

Support VLAN tag mode

Support VLAN transparent mode

Support VLAN trunk mode(max 8 vlans)

Support VLAN 1:1 translation mode(max 8 vlans)

Multicast

Support IGMPv1/v2

Support IGMP Snooping

Max Multicast vlan 8

Max Multicast Group 64

QoS

Support 4 queues

Support SP and WRR

Support 802.1P

Classification: D-MAC/S-MAC/D-IP/S-IP/L4-S-Port/L4-D-Port/Vlan/Cos/Ether Type/DSCP

Layer 3

Support IPv4,IPv6 and IPv4/IPv6 dual stack

Support DHCP/PPPOE/Static IP

Support Static route:  Download:766Mbps, Upload:400Mbps

Support NAT

Support route, bridging mode

Management

Support CTC OAM 2.0 and 2.1

Support WEB

Support TELNET

Support CLI

Throughput

Upstream >900Mbps

Downstream >960Mbps

Packet lost

14Hours /Lost 0
