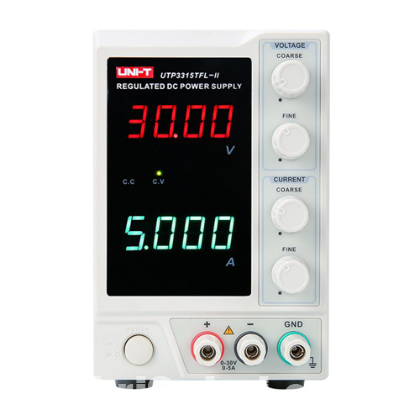

UTP3315TFL-II linear DC power supplies are high-quality and stable devices. These power supplies output pure and reliable signals. Other features include a 4-digit voltage and current LED display, short-circuit protection, overload protection, reverse polarity protection, and more. These power supplies are ideal tools for university and technical trade schools, electronics production lines, household appliance repair companies, etc.

Technical Parameters
Operating Conditions:
Operating voltage: AC 110V/220V ± 5PHz/60Hz
Operating conditions: Temperature 0°C~40°C, relative humidity 85%
Storage conditions: Temperature -10°C~80°C, relative humidity 80%
Output voltage: 0-30 V
Output current: 0-5 A
Output power: 160W
Load regulation: Voltage: , Current:
Line regulation: Voltage: , Current:
Setting resolution (25°C+5°C): Voltage: 10mV, Current: 1mA
Ripple and noise: Voltage: ≤2 mVrms, Current: ≤3 mArms
Setting accuracy (20Hz- 20MHz): Voltage: , Current:
Display: LED
Power: 110 V/220 V±5
