                                            Ubiquity Nano Station M5 (NSM5)
NSM5, Nano station M5 802.11a/n MIMO antenna, WiFi Wireless Outdoor CPE, UBIQUITY, 15+ km

Brand: Ubiquiti

Model: NSM5

EAN/UPC: 0810354022548

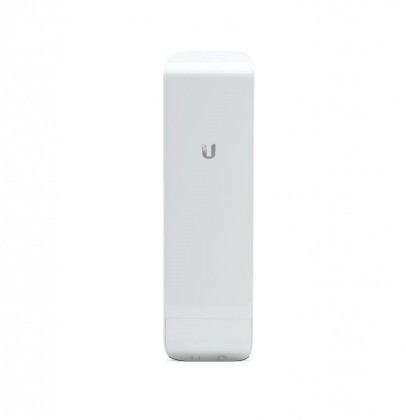

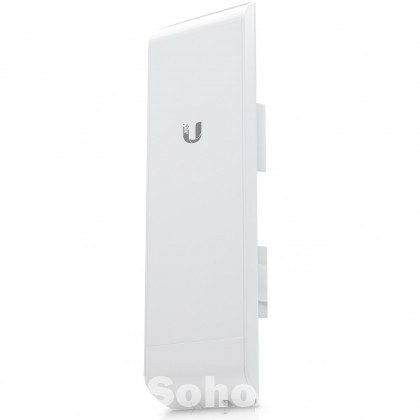

Nano Station M5

The NanoStation M5 proves that efficiency can still be equated to affordability. Even if it’s low cost, its performance is luxurious. It has a maximum transmission speed of about 300 mbps, allowing it to serve multiple devices at one time. It follows the TDMA (Time Division Multiple Access) protocol, which permits users to effectively schedule time slots in order to maximize the transmission and lower the latency period. It works at a frequency of 5.5GHz, a channel that is not prone to noise and interference. The integrated antenna connects via the 2x2 MIMO technology with a reach of 16dBi, so it’s ideal for complexes or buildings made up of different floors. Paired with QoS, you can easily prioritize bandwidth allocation.

It runs on an Atheros 24KC MIPS chipset with a clock speed of 400 MHz. It has a 32MB RAM and 8MB NAND Flash.

PoE Connection

The Nano Station M5 is equipped with the “intelligent PoE.” This means you can reset it through its power supply, not directly in the unit. This is accomplished via the dual Ethernet port, one of which is dedicated for PoE use. In the process, you’re able to make the most of your electric power and save yourself the hassle of dealing a lot of wires. You can also add an IP camera, which permits you to keep track of your property, among others, through a web-based access.

Various Connectivity Options

The Nano Station M5 can be used as an access point, connecting to hundreds of devices all at the same time, or as a client, which can be connected to other networks through a bridge. The level of flexibility makes this a fantastic and convenient addition to your networking system.


Quick Monitoring Process

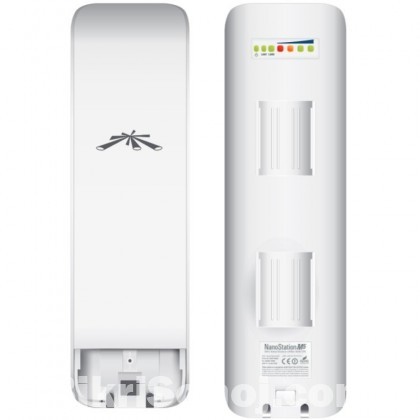

The Nano Station M5 is easy to monitor through its strength indicators following the integration of 2 pairs of LEDs.


Compact CPE Design
The Nano Station®M features the CPE design that expanded the global Wireless ISP industry.

Ubiquity Networks Nano station M5

Great Performance: 150+ Mbps real outdoor throughput and up to 15km+ range. Typical range is 2-4 miles from a LOS tower running airMAX sector antenna's and Rocket M5's.

Next-Gen Antenna Design: 11dBi dual-polarity gain at 5GHz with optimized cross-polarity isolation in a compact form-factor.
Dual Ethernet Connectivity: A secondary Ethernet port with software enabled POE output for seamless IP Video integration.
Intelligent POE: Remote hardware reset circuitry of Nano Station M allows for device to be reset remotely from power supply location.
802.3af 48V Compliant - Easily becomes 802.3af 48V compliant through use of Ubiquity Instant 802.3af adapter. The adapter sold separately (SKU#I8023AF-OD or I8023AF-ID)
Easy Installation - Easily mountable to a pole/mast with mounting straps provided. In addition, the Nano Station M5 can be mounted and adjusted in any direction in a 90-degree angle through the use the Nano Bracket. The Nano Bracket is sold separately (SKU#MT-NANO U)

    5 GHz, 150 Mbps, 15+Km Range.
    Processor Specs: Atheros MIPS 24KC, 400MHz
    Wireless: 5Ghz Atheros, 27dBm Adjustable down to 8dBm, AES Encryption
    Memory Information: 32MB SDRAM, 8MB Flash
    Networking Interface: 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface, PoE Pass through
    Mount and mounting strap (Nano bracket is optional, sold separately)
