Negotiable

                                            Brand: TVS

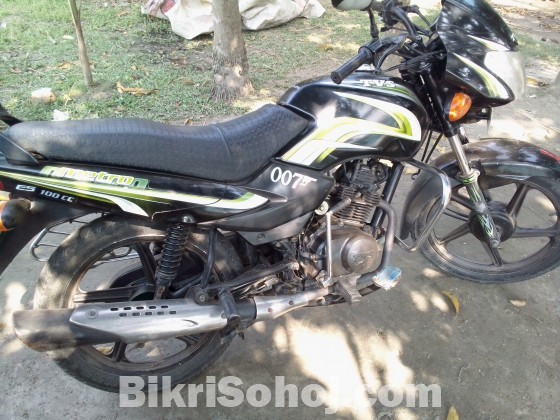

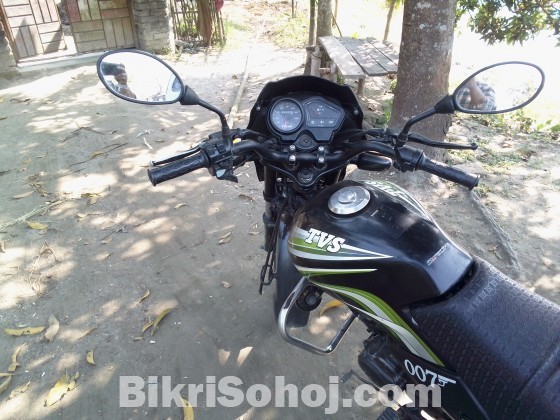

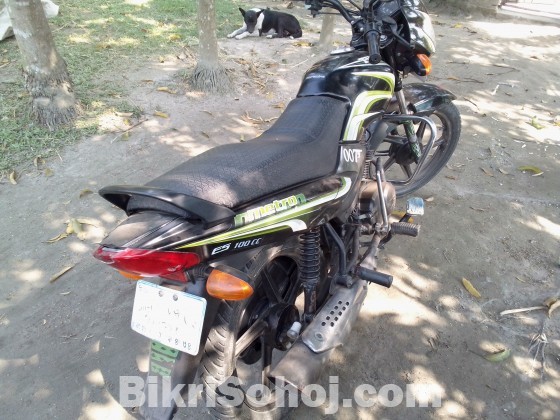

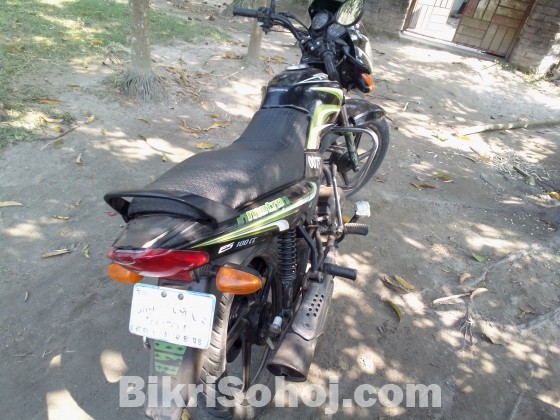

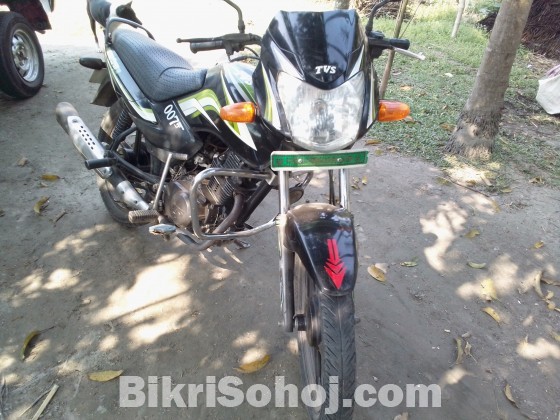

Model: Metro ES 100cc

ENGINE
Type: single cylinder , 4 stroke, air cooled spark ignition engine
Cylinder: 51 mm
Stroke: 48.8 mm
Piston displacement: 99.7 cc
Compression ratio: 9.3 : 1
Carburettor: Spaco AW 17/Keihin
Air filter: Double polyurethane foam filter element
Lubrication system: Positive lubrication
Maximum power in kW: 5.5 @ 7500 rpm
Maximum torque in Nm: 7.5 @ 5000 rpm
Maximum speed: Around 80 km/hr
Engine idling rpm*: 1400 ± 100 rpm
Starting system : Electric starter

TRANSMISSION
Clutch: Wet – Multi plate type
Primary transmission:     Spurgears
Secondary transmission: Chain and sprockets

GEAR RATIOS:
I gear: 3.273
II gear: 1.765
III gear: 1.238
IV gear: 0.958
Primary reduction: 3.722
Final reduction: 3.000

CHASSIS
Overall length: 1990 mm
Overall width: 705 mm
Overall height: 1080 mm
Trail length: 85 mm
Ground clearance: 170 mm
Wheel base: 1280 mm
Maximum gradeability: 10°
Steering angle: 88°
Caster angle: 25.1◦
Frame: Single cradle tubular frame
Kerb weight: 103 kg -KS/108kg-ES
Pay load: 130kg
Maximum laden weight: 233 kg-KS/238kg-ES
Front suspension: 5 step adjustable hydraulic shocks with swing arm.
Rear suspension: 2250 mm

TYRE
Tyer size Front: 2.75 × 17 -4 Ply rating
Tyer size Rear: 3.00× 17 -6 Ply rating
Tyre Pressure Front: 1.75 kg/cm² (25 PSI)
Tyre Pressure Rear -solo: 2.25 kg/cm² (32 PSI)
Tyre Rear -dual: 2.25 kg/cm² (32 PSI)

BRAKES
Front: 110 mm dia(hand operated)
Rear: 110 mm dia (Foot operated)

ELECTRICAL
Type: AC Digital ignition
Spark plug: MICO UR5DC
Spark plug gap: 0.6 -0.8 mm
Magneto: 12V,60W(fly wheel magneto)
Battery type: 12V, 2.5 Ah -KS Model ,12V, 5 Ah -ES Model
Head lamp: 12V, 35/35W× 1
Tail/break lamp: 12V, 5/21W×1
Turn signal lamp: 12V, 10W ×4
Tail/break lamp: 12V, 3.4 W×2
Speedometer lamp: 12V, 1.7 W×1
Fuel warning lamp: 12V, 1.7 W×1
High bean indicator lamp: 12V, 1.7 W×1
Neutral indicator lamp: 12V, 1.7 W×1
Turn signal indicator lamp: 12V, 1.7 W×1
Horn: 12V DC
Fuse: 10A × 1

CAPACITIES:
Fual tank capacity: 12.0 litres (reserve 2 litres)
Fuel: Unleaded Petrol
Engine cum transmission oil and capacity: TVS TRU4 4T oil, 900 ml (after draining) and 1000 ml (after disassembly)
Front fork oil capacity: IOC teleshockab oil, 140 ± 3 ml per leg
