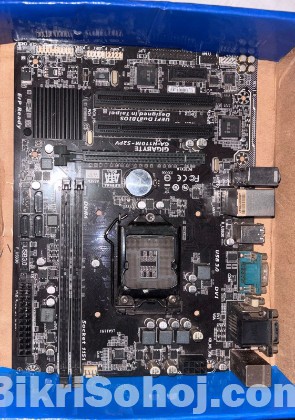

motherboard GA-H110M Gigabyte

For sale by: Md Abu Hanif Ritu, 23 Sep 2026 01:19 pm Location: Rangpur, Rangpur

Tk 4,500

Shere This Ad:

Supported CPU
Support for 7th/6th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
Chipset
4 x SATA 6Gb/s connectors
BIOS
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 18.0cm
Audio
8-Channel Audio
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Expansion Slots
PCI
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
2 x PCI slots
Memory
Slots
2 x DDR4 DIMM sockets
Supported Memory
Dual channel memory architecture
Support for DDR4 2400/2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
supporting up to 32 GB of system memory
Graphics
Graphics
Integrated Graphics Processor - Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
Max Shared Memory
Maximum shared memory of 1024 MB
Connector & Ports
D-Sub (s)
1 x D-Sub port
DVI-D (s)
1 x DVI-D port
USB (s)
Chipset:
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
5 x USB 2.0/1.1 ports (4 ports on the back panel, 1 port available through the internal USB header)
Chipset+GENESYS LOGIC USB 2.0 Hub:
3 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)
GbE LAN chip (10/100/1000 Mbit)
Audio
1 x front panel audio header
3 x audio jacks (Line In, Line Out, Mic In)
Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
Others
Special Features
Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
Support for Q-Flash
Support for Smart Switch
Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version)
cFosSpeed

Note: Usable
