                                            Specification
Recording
Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Resolution When 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Bit Rate 32 Kbps to 10 Mbps
Others Frame Rate
Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
Dual-stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Video Detection And Alarm
Alarm Input N/A
Network
Ethernet Port 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Network Function TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Storage
Internal HDD 2 SATA interfaces
Auxiliary Interface
USB Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
RS485 RS-485 (half-duplex)
Power
Power Supply 12 VDC, 5 A
Power Consumption ≤ 40 W
Construction
Dimensions 380 × 320 × 48 mm (15.0” × 12.6” × 1.9”)
Net Weight ≤ 2.1 kg (4.6 lb)
Warranty
Manufacturing Warranty 01-Year Warranty
Key Features

Model: IDS-7232HQHI-M2-S
Efficient H.265 pro+ compression technology
Encoding ability up to 1080p @ 15 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 40 network cameras can be connected

Description

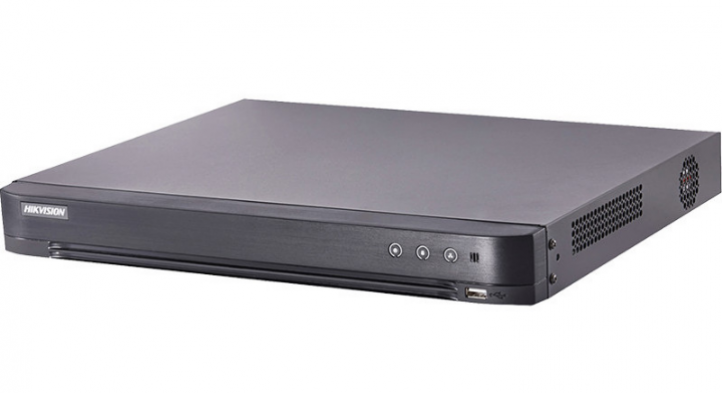

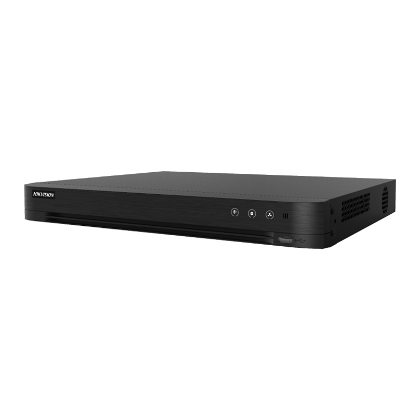

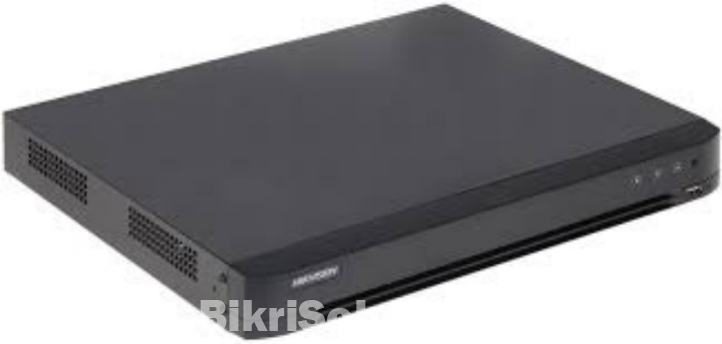

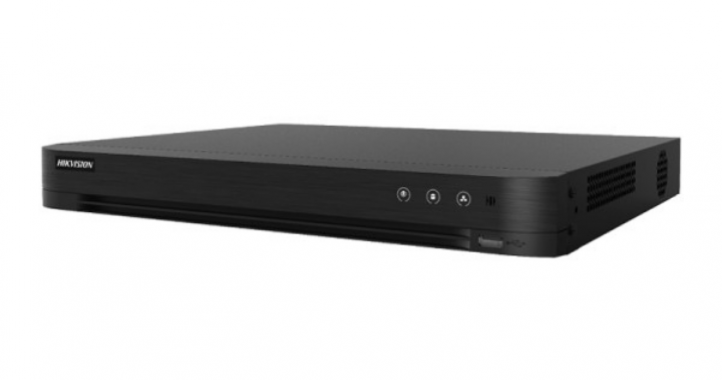

Hikvision IDS-7232HQHI-M2-S 32 Channel 1080p 1U H.265 AcuSense DVR

The Hikvision IDS-7232HQHI-M2-S is a high-performance 32-channel 1080p 1U H.265 AcuSense DVR designed for surveillance and security applications. It incorporates advanced technologies and features to ensure reliable and efficient video recording and monitoring. This DVR is its deep learning-based motion detection 2.0, which is available for all analog channels. This technology utilizes artificial intelligence and deep learning algorithms to accurately detect and analyze motion in the video feed. It helps to reduce false alarms caused by environmental factors and ensures that only relevant events are flagged for further action. The IDS-7232HQHI-M2-S is equipped with deep learning-based perimeter protection capabilities. This feature enables the DVR to intelligently identify and classify objects entering or leaving a predefined area, such as a building entrance or a restricted zone. It enhances the security system's ability to detect and respond to potential threats in real time. The DVR employs H.265 pro+ compression technology, which is highly efficient in reducing bandwidth and storage requirements without compromising video quality. This compression standard allows for the encoding of video at up to 1080p resolution and 15 frames per second (fps), ensuring smooth and detailed playback. The IDS-7232HQHI-M2-S offers flexibility in camera connectivity with support for five input signals adaptively, including HDTVI, AHD, CVI, CVBS, and IP. This versatility allows users to integrate various types of cameras into their surveillance system, making it compatible with a wide range of camera models and brands. The DVR provides ample scalability with the ability to connect up to 40 network cam
