Negotiable

                                            Specification
Audio and Video
IP Camera Input IP video input: 16-ch

Two-Way Talk Two-way audio: 1-ch, RCA (2.0 Vp-p, 1kΩ)
Recording
Resolution Recording Resolution: Up to 5MP\
Synchronous Playback: Up to 16-ch synchronous playback at 4CIF resolution
Record Rate Up to 5 MP
Video Detection And Alarm
Video Detection IP Video Input: 16-ch (8-ch@720P, 6-ch@1080P)
Alarm Input Alarm Input/Output: Alarm in / out 16 / 4 (optionally can be expanded to 16 / 8)
Alarm Input/Output: Alarm in / out 16 / 4 (optionally can be expanded to 16 / 8)
Playback And Backup
Sync Playback Up to 16-ch synchronous playback at 4CIF resolution
Search Mode Yes
Playback Function Yes
Backup Mode Yes
Third Party Support
Third Party Support Third-party network cameras supported
Network
Interface Network Interface: 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
PoE Switch (Built In): (-16P) 16 independent 100 Mbps PoE network interfaces
Power over Ethernet: (-16P) 16 independent 100 Mbps PoE network interfaces\
Serial Interface: RS-232 and RS-485

Ethernet Port Network Interface 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
Power over Ethernet (-16P) 16 independent 100 Mbps PoE network interfaces
PoE PoE Switch (Built In) (-16P) 16 independent 100 Mbps PoE network interfaces
Power Consumption ≤ 20W (without hard disk, DVD-R/W or PoE)
Power over Ethernet (-16P) 16 independent 100 Mbps PoE network interfaces
Network Function 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
(-16P) 16 independent 100 Mbps PoE network interfaces
(-16P) 16 independent 100 Mbps PoE network interfaces
Storage
Internal HDD Max 16TB 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs (8TB with DVD R/W + 2HDD)
Auxiliary Interface
USB 2 × USB 2.0 + 1 × USB 3.0
RS232 Yes
RS485 Yes
Power
Power Supply Max. Power 200W Power supply 100 ~ 240 VAC
Power Consumption ≤ 20W (without hard disk, DVD-R/W or PoE)
Component Environment
Operational Conditions -10ºC ~ + 55ºC (14ºF ~ 131ºF) Working humidity 10 % ~ 90 %
Storage Conditions Max 16TB 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs (8TB with DVD R/W + 2HDD)
Construction
Dimensions 445 × 390 ×70 mm ( 17.5"× 15.3" × 2.8")
Net Weight ≤ 4 Kg (without hard disk)
Key Features

Model: DS-7632NI-K2 32 ch
Up to 32 IP camera Channel
Up to 5 Megapixels resolution
IP video input: 16-ch
Up to 4 SATA interfaces

Description

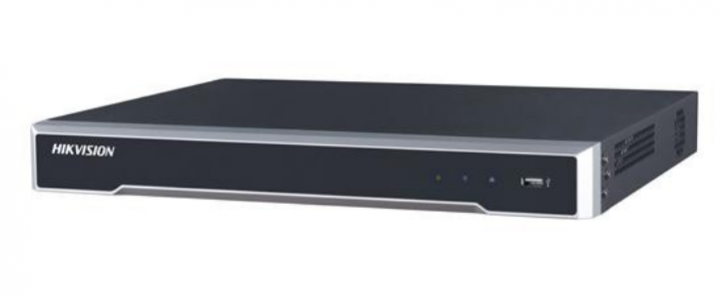

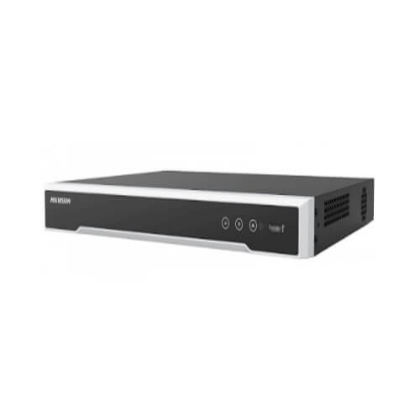

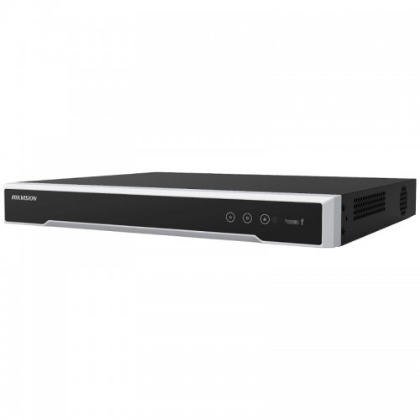

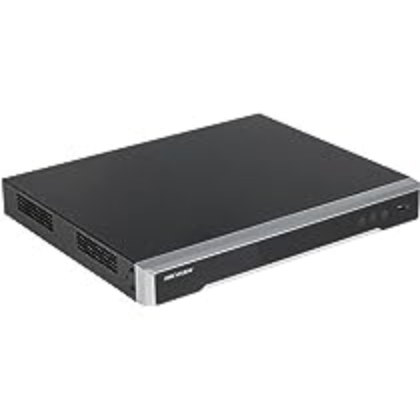

Hikvision DS-7632NI-K2 32 channel NVR
Hikvision DS-7632NI-K2 is a 32 channel NVR from Hikvision. It comes with Third-party network cameras supported Up to 5 Megapixels resolution recording, HDMI and VGA output at up to 1920×1080P resolution with 16/32-ch network cameras which can be connected with 160M incoming bandwidth. This NVR supports up to 4 SATA interfaces with supporting network detection, including network delay, packet loss, etc. This NVR also has Alarm in / out 16 / 4 (optionally can be expanded to 16 / 8), 1-ch, RCA (Linear, 1kΩ) with (-16P) 16 independent 100 Mbps PoE network interfaces, ≤ 20W (without hard disk, DVD-R/W or PoE) power consumptuion and (-16P) 16 independent 100 Mbps PoE network interfaces, that provides you excellent performance. It supports TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS Network protocols. It has 4HDD UP TO 6TB Each HDD and for Compression Format it supports H.265, H.264, MPEG4 codecs. Hikvision DS-7632NI-K2 32 channel NVR offers 01 years of Warranty.
