Negotiable

                                            Specification
Basic Information
Supported CPU Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
L3 cache varies with CPU
Chipset Intel H410 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
Memory
Type Dual-channel architecture
Slots 2 x DDR4 DIMM
Supported Memory Intel® Core™ i9/i7 processors:
Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules
Intel Core i5/ i3/ Pentium /Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz memory modules
Maximum Memory 64 GB
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
Max Shared Memory 512MB
Connector & Ports
HDMI 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
USB (s) 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
4 x SATA 6Gb/s connectors
Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Warranty Information
Manufacturing Warranty 03 Years
Others
Special Features Support for APP Center
@BIOS
Ambient LED
Easy Tune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software Support for Windows 10 64-bit

Key Features

Model: Gigabyte H410M H
Intel Socket LGA1200 for 10th Gen Processors
8-Channel HD Audio
Smart Fan 5 features
Anti-Sulfur Resistors Design

Description

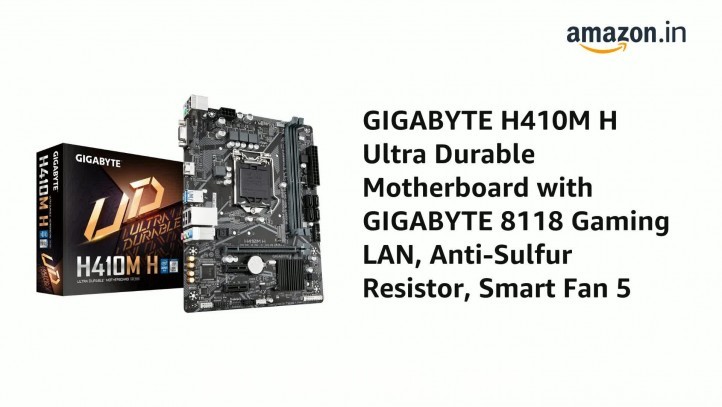

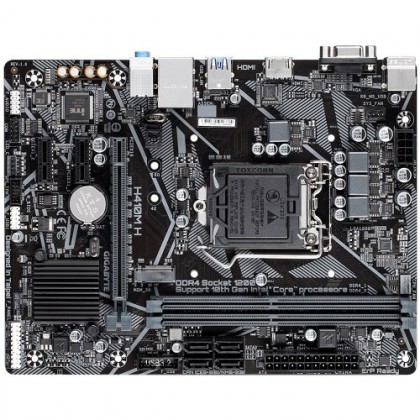

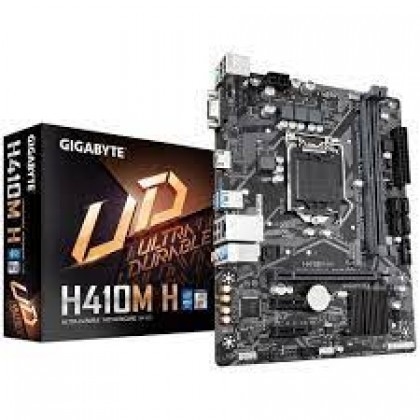

Gigabyte H410M H 10th Gen Micro ATX Motherboard

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. With Smart Fan, 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan, but 5 more hybrid fan h
