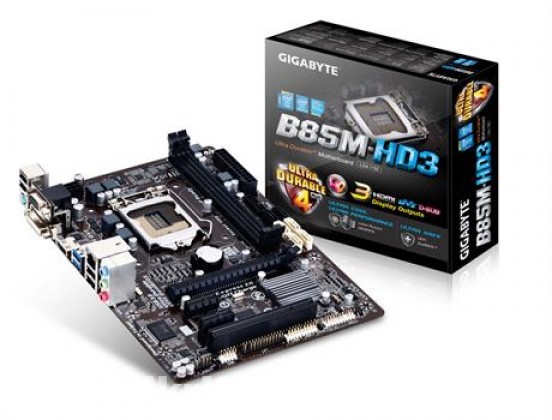

GA-B85M-HD3 (rev. 2.0) rev. 3.0 1.x
For sale by: Arifin, 29 Oct 2019 07:11 pm Location: Dhaka, Dhaka, Badda
Tk 3,800
Negotiable
Shere This Ad:
Send Email to Seller
Send Email to Seller
Chipset TypeIntel B85 Express
Compatible ProcessorsPentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-1200 series
Processor SocketLGA1150 Socket
Max Processors Qty1
ManufacturerGigabyte Technology Co. Ltd.
EXPANSION / CONNECTIVITY
Expansion Slots2 x DIMM 240-pin (1.5 V)
1 x PCIe 3.0 x16
1 x CPU
1 x PCI
2 x PCIe 2.0 x1
Storage InterfacesSATA-600 -connectors: 4 x 7pin Serial ATA - 4 devices
SATA-300 -connectors: 2 x 7pin Serial ATA - 2 devices
Internal Interfaces4 x USB 2.0 - header
4 x USB 3.0 - header
1 x parallel - header
1 x serial - header
1 x audio - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector
PROCESSOR
Max Supported Qty1
Installed Qty0
MEMORY
Max Allocated RAM Size1 GB
MISCELLANEOUS
Microsoft CertificationsCompatible with Windows 7
Product Typemotherboard
Compatible with Windows 7"Compatible with Windows 7" software and devices carry Microsofts assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
INTERFACE PROVIDED
Qty1, 2, 4
TypeDVI-D, HDMI, LAN (Gigabit Ethernet), PS/2 keyboard, USB 2.0, USB 3.0, VGA, audio line-in, audio line-out, microphone
Connector Typemini-jack
PROCESSOR / MEMORY / STORAGE
Max Supported Qty1
AUDIO
Audio CodecRealtek ALC887
Compliant StandardsHigh Definition Audio
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Network ControllerRealtek RTL8111F-VL
NetworkGigabit Ethernet
VIDEO
Video Outputgraphics adapter (CPU required)
GRAPHICS
Max Allocated RAM Size1 GB
RAM
Max Supported Size16 GB
FeaturesIntel Extreme Memory Profiles (XMP), dual channel memory architecture
AUDIO OUTPUT
Compliant StandardsHigh Definition Audio
Typesound card
Audio CodecRealtek ALC887
AudioHigh Definition Audio (8-channel)
LAN
Network InterfacesGigabit Ethernet
Network ControllerRealtek RTL8111F-VL
SUPPORTED RAM
Bus Clock1600 MHz, 1333 MHz
FeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP)
TechnologyDDR3
Max Size16 GB
Supported RAM Integrity CheckNon-ECC
HEADER
BrandGIGABYTE
Product LineGigabyte
ModelGA-B85M-HD3
Packaged Quantity1
CompatibilityPC
Revision1.0
MAINBOARD
Form Factormicro ATX
Processor SocketLGA1150 Socket
Compatible ProcessorsCeleron, Core i3, Core i5, Core i7, Pentium, Xeon E3-1200 series
Chipset TypeIntel B85 Express
Supported RAM TechnologyDDR3 SDRAM
Supported RAM Speed1333 MHz, 1600 MHz
Supported RAM Integrity Checknon-ECC
RAM Slots2 DIMM slots
Power Connectors24-pin main power connector, 8-pin ATX12V connector
MAINBOARD FEATURES
BIOS TypeAMI
BIOS FeaturesACPI 2.0a support, DMI 2.0 support, SMBIOS 2.6 support, UEFI BIOS
Hardware MonitoringCPU core temperature, CPU core voltage, CPU fan tachometer, CPU overheating protection, chassis fan tachometer, chassis temperature, system voltage
Hardware FeaturesDualBIOS, ESD Protection, GIGABYTE 333 Onboard Acceleration, GIGABYTE Hybrid digital power engine, GIGABYTE LAN Optimizer, Intel Extreme Memory Profile (XMP) support, Intel Rapid Start Technology, Intel Small Business Advantage support, Intel Smart Connect Technology, Intel Smart Response Technology, On/Off Charge, One Port One Fuse, Q-Flash, Ultra Durable 4 Plus
INTERFACES
StorageSerial ATA-300, Serial ATA-600
Storage Ports4 x SATA-600, 2 x SATA-300
USB 3.0 / FireWireUSB 3.0
USB / FireWire Ports Configuration (Active)2 x USB 3.0 + 4 x USB 2.0
EXPANSION SLOTS
Total Qty1, 2
Voltage1.5 V
TypeCPU, DIMM 240-pin, PCI, PCIe 2.0 x1, PCIe 3.0 x16
DIMENSIONS & WEIGHT
Width9.6 in
Depth6.9 in
