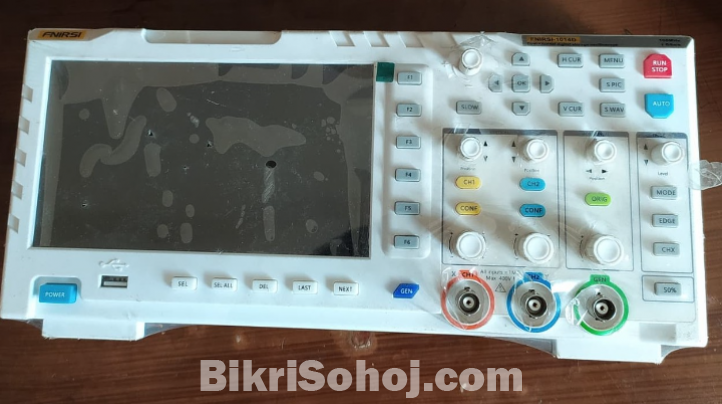

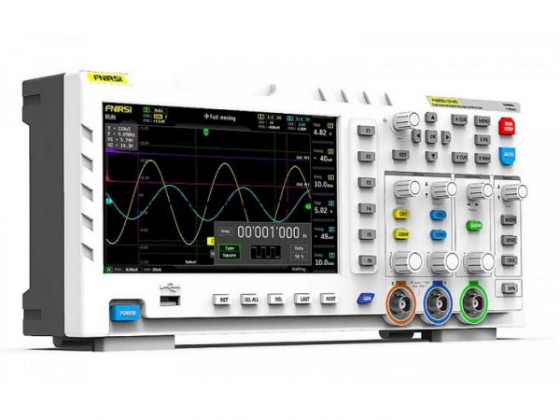

FNIRSI 1014D Oscilloscope 100Mhz

FNIRSI 1014D is a 100 MHz bandwidth dual-channel oscilloscope with a built-in waveform generator. The oscilloscope features a high real-time sampling rate of 1 GS/s, 240 kB memory, a large 7-inch display with 800 × 480 resolution, and advanced features for capturing, analyzing, and recording measurement results. Besides, the device features high voltage protection, which ensures safe operation with signals up to 400 V. Built-in generator generates 14 types of signals, voltage resolution is 8 bit, voltage 5 Vpeak-peak. FNIRSI 1014D is equipped with a USB interface to connect to the computer. This oscilloscope is designed for diagnostics and tuning of radio and electronic equipment.

Features
Compact and functional oscilloscope.
Large 7-inch TFT display (800 × 480 pixels).
High voltage protection: built-in module provides protection up to 400 V.
Built-in 1 GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.
Automatic measurement function.
Roll function.
 Lissajous figures graphic display function.
Screen brightness adjustment function.
Technical Specifications
Oscilloscope
Channels 2
Bandwidth 100 MHz
Real-time Sample Rate 1 GS/s
Storage Depth 240 kB
Input
Input Coupling DC, AC
Input Impedance 1 MΩ
Probe Attenuator 1 X, 10 X
Highest Test Voltage 40 V (1 X), 400 V (10 X)
Horizontal System
Time Base Scale 50 s/div – 10 ns/div
Vertical System
Time Base Scale 50 mV/div – 500 V/div
Rise Time < 3 ns
Vertical Resolution 8 bit
Voltage Accuracy ± 5%
Frequency Accuracy ± 0,01%
Trigger System
Trigger Mode Auto, Normal, Single
Trigger Type Rising/Falling edge
Measuring System
Automatic Measurements VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty +, Duty-, Time +, Time-, Period
Cursor Measurements XY, Y trigger
Math FFT
Signal Generator
Waveform 14 types
Bandwidth 10 MHz (sine), resolution 1 Hz
Vertical Resolution 14 bit
General Specifications
Display color TFT display, 7 inches, 800 × 480 pixels
Interface USB (5 V / 2 A)
Built-in Memory 1 GB
Waveform Storage 1000 pictures + 1000 waveforms
Dimensions 310 mm × 145 mm × 70 mm
Net Weight 1500 g
Gross Weight 1632 g
