Condition:
Used
Item type:
RAMs
Brand:
Other brand
Description

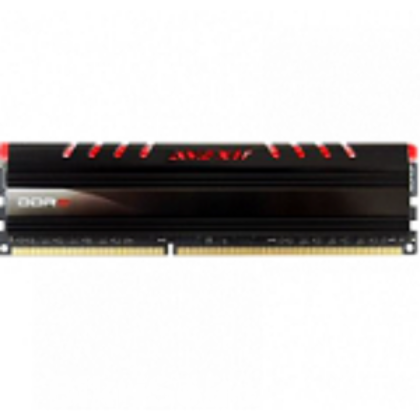

AVEXIR 4GB DDR4 2400Mhz AVD4UZ124001604G-1COR Power Supply- VDD=1.2V (1.14V to 1.26V) VDDQ = 1.2V (1.14V to 1.26V) VPP - 2.5V (2.375V to 2.75V) VDDSPD=2.25V to 2.75V Data transfer rates- PC4-2133 Programmable CASLatency- 17,16,14,13,12/li>, Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available Bi-Directional Differential Data Strobe 8 bit pre-fetch/li>, Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop) On-Die Termination (ODT) This product is in compliance with the RoHS directive. PCB- Height 1.180(30.00mm), double sided component SPECIFICATIONS CL(IDD)- 16 cycles Row Cycle Time (tRCmin)- 46.5ns (min.) Refresh toActive/Refresh/Command Time (tRFCmin)-260ns RowActive Time (tRASmin)- 33ns (min.) Power- TBD W* ULRating- 94 V - 0 Operating Temperature- 0℃ to 85℃ Storage Temperature- -55℃ to +100℃
