Negotiable

                                            Key Features

    Model: H81M-CS
    Intel Socket 1150 for 4th Generation Core i7/ i5/ i3/Pentium /Celeron Processors
    Supports Intel 22 nm CPU, Intel H81
    UEFI BIOS and EZ Mode
    GPU Boost, CrashFree BIOS 3

Specification
Basic Information
Supported CPU
 Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium /Celeron Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
- The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
 Intel H81
BIOS
 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor
 uATX Form Factor
7.5 inch x 7.0 inch ( 19 cm x 17.7 cm )
Audio
 Realtek ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Expansion Slots
PCI
 1 x PCIe 2.0 x16
1 x PCIe 2.0 x1
Memory
Type
 DDR3
Slots
 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supported Memory
 Supports Intel Extreme Memory Profile (XMP)
- Hyper DIMM support is subject to the physical characteristics of individual CPUs.
- Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
- Due to Intel chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
Graphics
Graphics
 Integrated Graphics Processor
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
Max Shared Memory
 1024 MB
Connector & Ports
USB (s)
 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
- 2 x USB 3.1 Gen 1 (blue)
- 2 x USB 2.0
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

LAN Port (s)
 Realtek 8111GR, 1 x Gigabit LAN Controller(s)
- 1 x LAN (RJ45) port(s)
Supported Storage
 2 x SATA 6Gb/s port(s), yellow
2 x SATA 3Gb/s port(s), dark brown,
Supports Intel Rapid Start Technology, Intel Smart Connect Technology
Audio
 Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
- 3 x Audio jack(s)
- 1 x Front panel audio connector(s) (AAFP)
Internal I/O Ports
 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM header
1 x LPT header
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Chassis Intrusion connector(s)
D-Sub (s)
 1 x D-Sub
Warranty Information
Manufacturing Warranty
 03 Years Warranty
Others
Special Features
 ASUS EPU :
- EPU
ASUS Exclusive Features :
- GPU Boost
- AI Suite 3
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Disk Unlocker
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Description

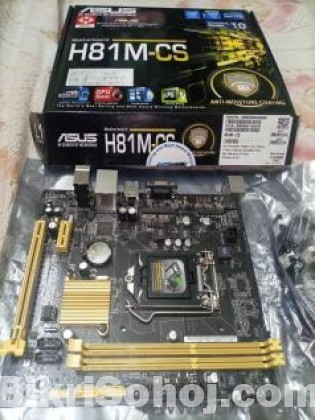

ASUS H81M-CS 4th Gen Intel Motherboard
