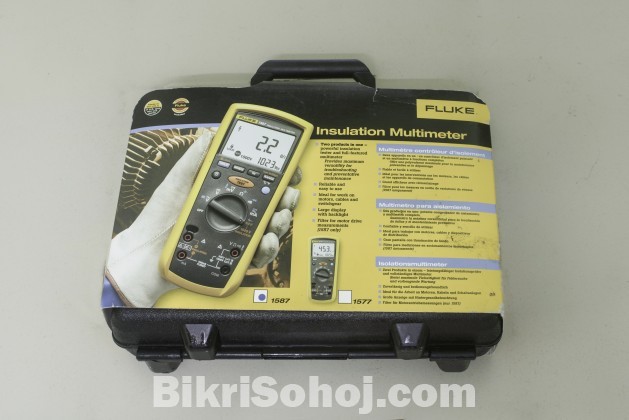

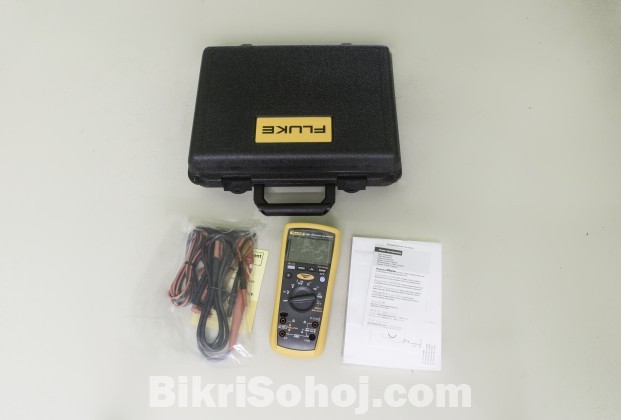

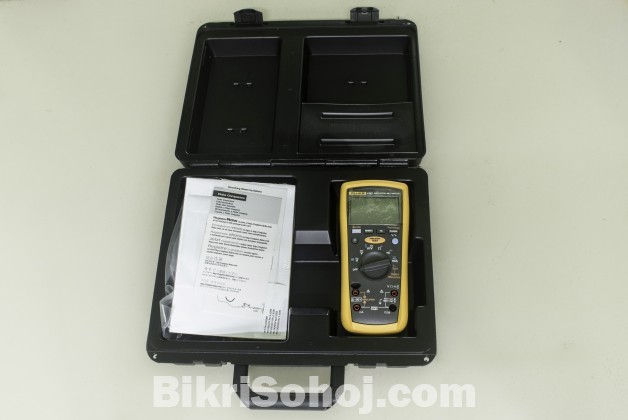

• Manual- and auto-ranging digital insulation multimeter measures insulation resistance, current, voltage, capacitance, frequency, resistance, and temperature, and performs diode tests for testing line insulation on motors, generators, cables, and switch gear

• True RMS meter provides accurate readings when measuring linear or nonlinear loads where the current or voltage has an undistorted or distorted waveform

• Insulation test voltages of 50, 100, 250, 500, and 1000V and insulation measurement range of 0.01 megohms to 2 gigohms

• Low-pass filter blocks unwanted voltages when measuring AC voltage and AC frequency to provide accurate measurements on inverters and variable-frequency motor drives

• Ingress Protection certified IP40; European Conformity (CE) marking; UL 61010-1; ANSI/ISA S82.01-2004; CAN/CSA C22.2 No. 1010.1:2004; IEC safety standards 61010-1:1002 and 61010.1-04, IEC61557-1; IEC61557-2; and IEC/EN 61010-1, 2nd edition for Category III installations up to 1000V and Category IV installations up to 600V, and Pollution Degree 2

• Insulation test voltages 50 volts; 100 volts; 250 volts; 500 volts; 1,000 volts

• Live circuit detection prevents insulation test if voltage of more than 30 volts is detected

• Auto-discharge of capacitive voltage for added user protection

• AC/DC voltage, DC milliVolts, AC/DC milliamps, resistance, continuity

• Testing for capacitance, diode, temperature, min/max, and frequency
