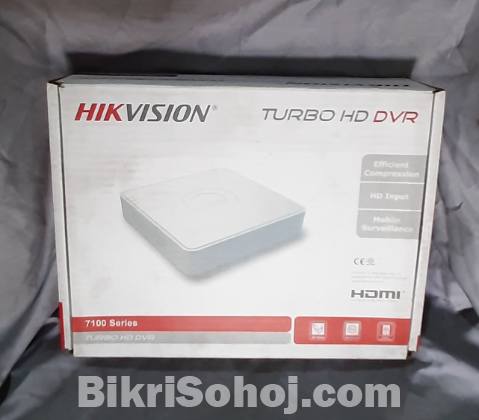

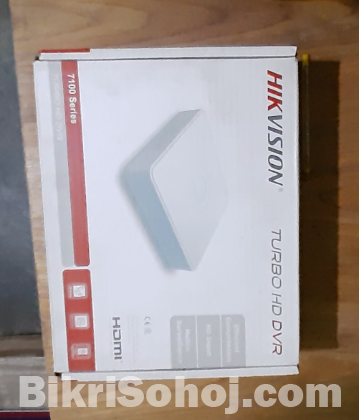

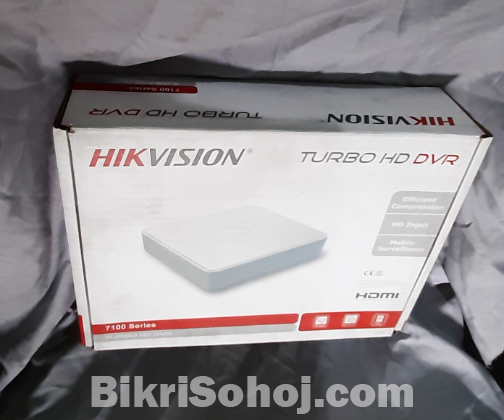

                                            HIKVISION DS-7104HQHI-K1 4-CH Turbo HD 1080P DVR


Brand : Hikvision
Series: 7100
Product ID: 26501,
Product modelDS-7104HQHI-K1
color : Write
Warranty: 1 Year

Description

HIKVISION DS-7104HQHI-K1 4-CH Turbo HD 1080P DVR Overview

• Recording

• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264

• Encoding Resolution

When 1080p Lite mode is not enabled:

4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;

When 1080p Lite mode is enabled:

4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Frame Rate

Main stream:

When 1080p Lite mode is not enabled:

For 4 MP stream access:

4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

For 1080p stream access:

1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode is enabled:

4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Video Bitrate32 Kbps to 6 Mbps

• Dual-StreamSupport

• Stream TypeVideo, Video & Audio

• Audio CompressionG.711u

• Audio Bitrate64 Kbps

• Video And Audio

• IP Video Input

1-ch (up to 5-ch)

Enhanced IP mode on:

2-ch (up to 6-ch), each up to 4 Mbps

Up to 6 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

• Incoming Bandwidth24 Mbps

• Analog Video Input

4-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input

4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60

*: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1.

• AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30

• HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30

• CVBS InputSupport

• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

4-ch via coaxial cable

• Audio Output1-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

• Synchronous Playback4-ch

• Network

• Total Bandwidth72 Mbps

• Remote Connection32

• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

• Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface

• Auxiliary Interface

• SATA1 SATA interface

• CapacityUp to 6 TB capacity for each disk

• Alarm In/OutN/A

• USB InterfaceReal panel: 2 × USB 2.0

• General

• Power Supply12 VDC, 1.5 A

• Consumption≤ 8 W

• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)

• Working Humidity10% to 90%

• Dimension (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)

• ≤ 1 kg (2.2 lb)


HIKVISION DS-7104HQHI-K1 4-CH Turbo HD 1080P DVR

HIKVISION 4-CH Turbo HD 1080P DVR, Connectable to HD-TVI & analog camerasH.265 Pro+ can improve encoding efficiency and reduce the data storage cost  Full channel recording at up to 4 MP lite resolutionSmart search for efficient playback  Support the 3rd party cloud storageHik-Connect & DDNS (Dynamic Domain Name System) for easy network management  Max. 24/48/96 Mbps incoming bandwidth and output bandwidth limit configurable
